Capacitors in Series and Parallel

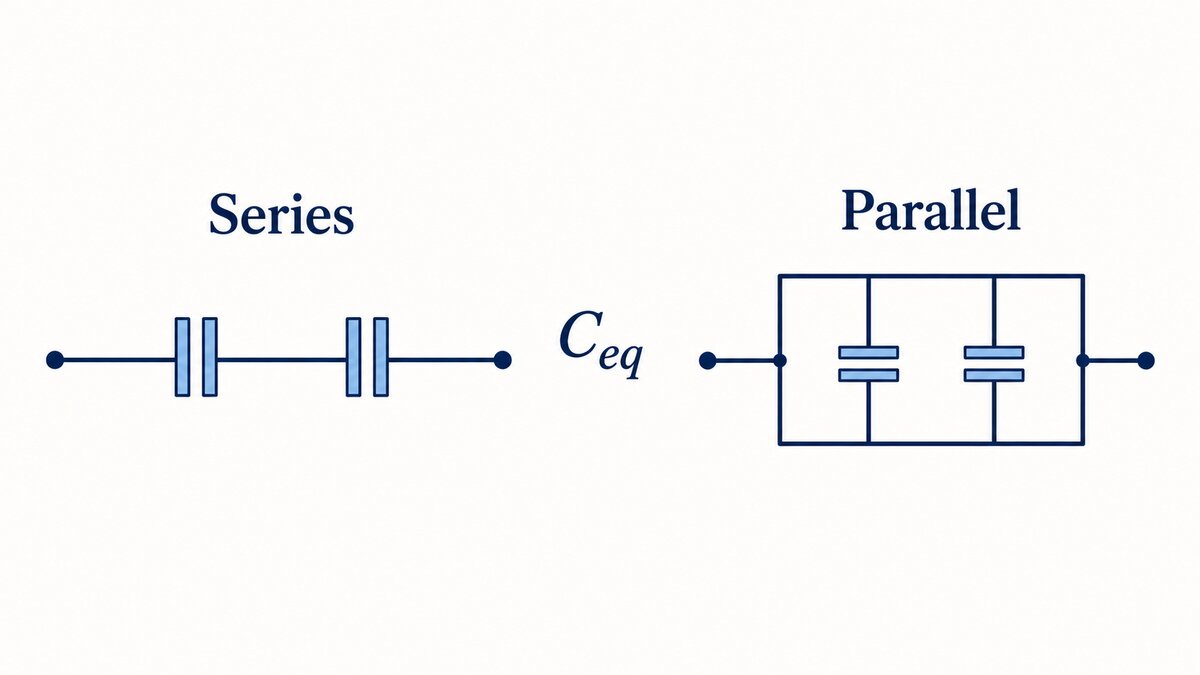

Capacitors follow rules for series and parallel that are the exact mirror image of the resistor rules — reciprocal addition in series, direct addition in parallel, the opposite way round. Students who have just mastered resistors often apply the resistor rule out of habit and lose the mark. This guide gives both capacitor formulas, four worked circuits, and the physical reason the rules flip: what stays the same is different for a capacitor than for a resistor.
Series capacitors
In series, every capacitor stores the same charge Q — the charging current has only one path, so exactly the same amount of charge accumulates on each plate in the chain. The voltage splits across the capacitors in inverse proportion to their capacitance. Adding a capacitor in series always decreases the equivalent capacitance.
Parallel capacitors
In parallel, every capacitor has the same voltage V across it (they share the same two nodes), while the total charge splits between them in proportion to each capacitance. Adding a capacitor in parallel always increases the equivalent capacitance — the plates effectively become one larger plate area.
Why the rules are reversed from resistors
A resistor in series shares the same current; a capacitor in series shares the same charge. A resistor in parallel shares the same voltage; a capacitor in parallel also shares the same voltage — but because capacitance is charge per volt (C = Q/V) rather than a ratio that behaves like resistance, the arithmetic comes out inverted. There is no shortcut around this — learn the two capacitor formulas as their own pair, not as "the resistor formulas swapped."
Worked example 1 — two capacitors in series
C₁ = 2 μF, C₂ = 3 μF, connected across a 10 V supply.
1/Ceq = 1/2 + 1/3 = 3/6 + 2/6 = 5/6, so Ceq = 6/5 = 1.2 μF — smaller than either individual capacitor, as expected for series.
Charge (same on both): Q = Ceq × V = 1.2 × 10 = 12 μC
Voltage across each: V₁ = Q/C₁ = 12/2 = 6 V, V₂ = Q/C₂ = 12/3 = 4 V. Check: 6 + 4 = 10 V ✓ — the individual voltages must add back to the supply voltage.
Worked example 2 — two capacitors in parallel
C₁ = 4 μF, C₂ = 6 μF, connected across a 5 V supply.
Ceq = 4 + 6 = 10 μF — larger than either individual capacitor, as expected for parallel.
Total charge: Q = Ceq × V = 10 × 5 = 50 μC
Charge on each (same 5 V across both): Q₁ = C₁V = 4×5 = 20 μC, Q₂ = C₂V = 6×5 = 30 μC. Check: 20 + 30 = 50 μC ✓ — the individual charges must add back to the total charge.
Worked example 3 — a mixed series-parallel circuit
C₁ = 2 μF is in series with a parallel combination of C₂ = 3 μF and C₃ = 6 μF. Find the total capacitance.
Step 1 — reduce the parallel part first: Cp = C₂ + C₃ = 3 + 6 = 9 μF
Step 2 — now combine in series with C₁: 1/Ctotal = 1/2 + 1/9 = 9/18 + 2/18 = 11/18, so Ctotal = 18/11 = 1.64 μF
As with resistors, reduce the innermost group first, then work outward — but remember the parallel step here is direct addition, since it is capacitance, not resistance.
Worked example 4 — n equal capacitors in series (the shortcut)
Three 12 μF capacitors are connected in series. Find Ceq.
1/Ceq = 1/12 + 1/12 + 1/12 = 3/12 = 1/4, so Ceq = 4 μF
For n equal capacitors C in series, this always simplifies to Ceq = C/n — here C/n = 12/3 = 4 μF, matching the long method exactly. Notice this is the mirror of the resistor shortcut, where n equal resistors in parallel give R/n; here it is n equal capacitors in series that give C/n.
Common mistakes that cost marks
- Applying the resistor formulas by habit. Writing Ceq = C₁+C₂ for a series pair, or using the reciprocal formula for a parallel pair — the exact reverse of the correct capacitor rules.
- Forgetting charge is constant in series, not voltage. In a series capacitor chain, it is Q that is the same on every capacitor; V is what differs.
- Forgetting voltage is constant in parallel, not charge. The reverse of the above — every parallel capacitor sees the same V, but stores a different Q.
- Forgetting to invert the reciprocal sum when finding series Ceq — computing 1/Ceq and stopping there instead of flipping it.
- Mixing units. μF, nF and pF appear together often; convert everything to the same unit before combining, since 1 μF = 1000 nF = 10⁶ pF.
Where capacitor combinations appear in exams
| Exam | Typical use |
|---|---|
| CBSE Class 12 | Electrostatic Potential and Capacitance — series/parallel networks, energy stored |
| JEE Main & Advanced | Multi-capacitor networks combined with dielectric-insertion questions |
| NEET | Direct series/parallel substitution, usually two or three capacitors |
| GATE (Engineering) | Capacitor networks in filter and timing-circuit design problems |
Practise the reciprocal arithmetic without slips. The Scientific Calculator's fraction and division keys make checking a step like 1/2 + 1/9 fast while you work through practice circuits.
