ICE Table Method for Equilibrium Calculations in Class 11
Most Class 11 equilibrium numericals ask the same thing in different words: "Some amounts are given at the start. Find the amounts at equilibrium." The ICE table is the tidy way to do this. It turns a confusing paragraph into a short algebra problem. Learn the table once and you can solve almost every Kc problem in your chapter.
What ICE stands for
ICE is a three-row table with one column for each substance in the reaction.
- I = Initial. The concentration of each substance at the start, before any reaction.
- C = Change. How much each substance changes. Use the balanced equation: the change is proportional to the coefficients. Reactants lose (−), products gain (+).
- E = Equilibrium. Initial plus change. Only these values go into the Kc expression.
Kc = [C]c[D]d / ([A]a[B]b)
Change row: −ax, −bx, +cx, +dx (x is the unknown)
Use concentrations in mol/L. If the question gives moles and a volume, divide moles by the volume first. When the total moles of gas are the same on both sides (Δn = 0), the volume cancels out of Kc, but it is still safer to convert to concentrations.
The five steps
- Write the balanced equation and the Kc expression.
- Fill the I row with the starting concentrations (zero for anything not added).
- Fill the C row using x and the coefficients.
- Fill the E row. Put these into the Kc expression.
- Solve for x, then calculate the equilibrium concentrations. Check by putting them back into Kc.
Worked examples

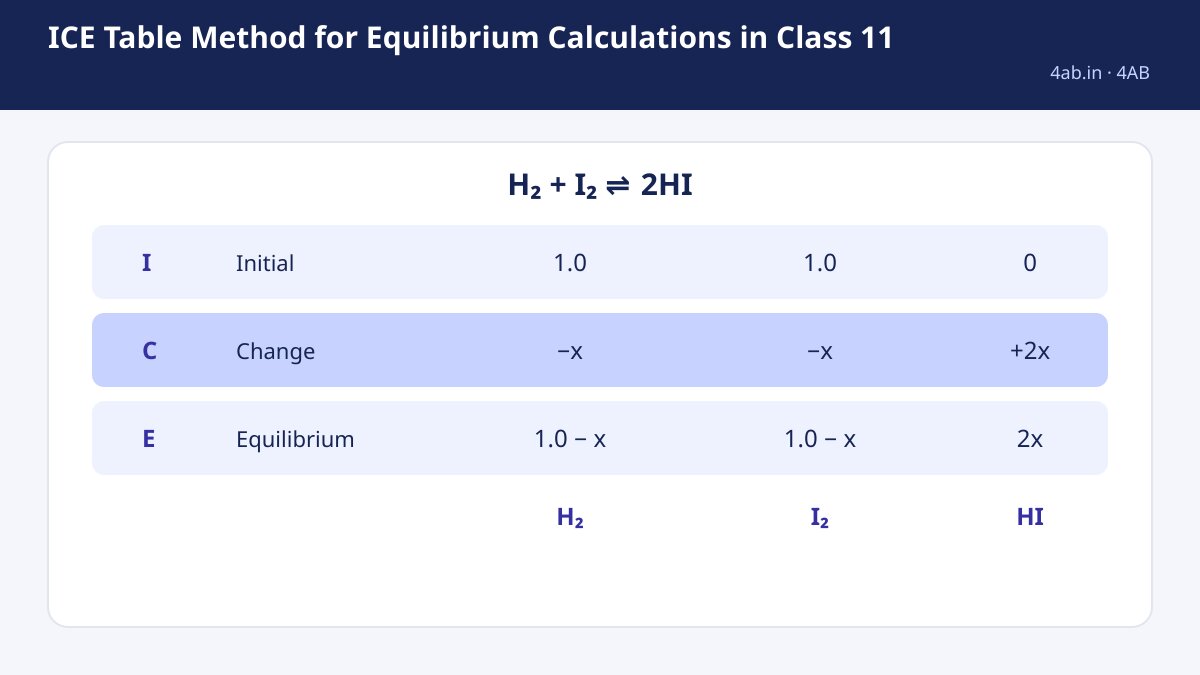

I: [H2] = 1.0, [I2] = 1.0, [HI] = 0.
C: −x, −x, +2x.
E: 1.0 − x, 1.0 − x, 2x.
Kc = (2x)2 / (1.0 − x)2 = 50. The right side is a perfect square, so take the square root of both sides.
2x / (1.0 − x) = √50 = 7.071. So 2x = 7.071 − 7.071x, so 9.071x = 7.071, so x = 0.7795.
[H2] = [I2] = 1.0 − 0.7795 = 0.2205 M. [HI] = 2 × 0.7795 = 1.559 M.
Check: (1.559)2 / (0.2205)2 = 2.430 / 0.04862 = 50.0 ✓
I: 0.10, 0. C: −x, +2x. E: 0.10 − x, 2x.
Kc = (2x)2 / (0.10 − x) = 0.0046, so 4x2 = 0.0046(0.10 − x) = 0.00046 − 0.0046x.
Rearrange: 4x2 + 0.0046x − 0.00046 = 0.
x = [−0.0046 + √(0.00462 + 4 × 4 × 0.00046)] / (2 × 4) = [−0.0046 + √0.00738] / 8 = (−0.0046 + 0.08591) / 8 = 0.01016.
[NO2] = 2x = 0.0203 M. [N2O4] = 0.10 − 0.01016 = 0.0898 M.
Check: (0.0203)2 / 0.0898 = 0.0046 ✓ (the negative root of the quadratic is rejected because concentration cannot be negative).
I: 2.0, 1.0, 0. C: −2x, −x, +2x. The equilibrium SO3 = 2x = 1.2, so x = 0.6.
E: SO2 = 2.0 − 1.2 = 0.8; O2 = 1.0 − 0.6 = 0.4; SO3 = 1.2.
Kc = (1.2)2 / [(0.8)2 × 0.4] = 1.44 / 0.256 = 5.625 L/mol, about 5.6 L/mol.
Notice the unit: Δn = −1 here, so Kc has a unit. Many textbooks leave out units for K, so follow your teacher's style.
E: 0.10 − x, x, x. So x2 / (0.10 − x) = 1.0 × 10−6.
Because Kc is tiny, x is far smaller than 0.10, so take 0.10 − x ≈ 0.10. Then x2 = 1.0 × 10−7, and x = 3.16 × 10−4 M.
Check: x is 0.32% of 0.10, well under 5%, so the shortcut is acceptable. Solving the full quadratic gives x = 3.157 × 10−4 M, nearly the same.
When can you ignore x in the denominator?
If Kc is very small compared with the starting concentration, x is tiny and "initial − x" is almost the initial value. A common classroom rule is to check that x is less than 5% of the initial value. In Example 2, x is 10.2% of 0.10, so the shortcut would be a poor choice there; in Example 4 it works. Always verify the shortcut after you use it, and if it fails, solve the quadratic.
- Using moles instead of concentration. If volume is given, convert to mol/L before putting values in Kc.
- Forgetting the coefficients in the C row. For 2HI the change is 2x, and the Kc expression raises the concentration to the power 2.
- Putting the I row values into Kc. Only the E row belongs there.
- Including pure solids and liquids. They do not appear in the Kc expression.
- Wrong sign of x. If only reactants are present at the start, the reaction must go forward, so reactants decrease. If only products are present, it goes backward.
- Keeping both roots of the quadratic. Reject any root that makes a concentration negative.
Exam summary
| Given | Find | Method |
|---|---|---|
| Initial amounts and Kc | Equilibrium amounts | ICE table, solve for x |
| Initial amounts and one equilibrium amount | Kc | Find x from the known amount, complete E row |
| Kc very small | Equilibrium amounts | Ignore x in the denominator, then verify |
| Perfect-square expression | Equilibrium amounts | Take the square root of both sides |
Check your textbook for how your board writes units of Kc and what level of algebra is expected.
